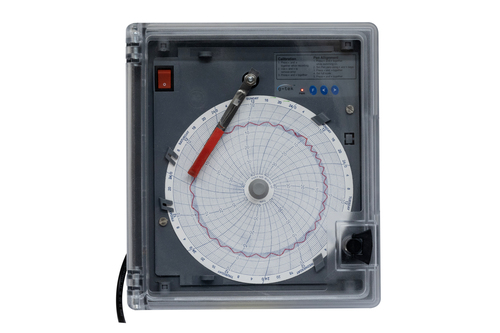

6 Inch 1 Pen Circular Chart Recorder Without Display Inkless

Product Description

Inkless chart recorders from GTek are available in 4 and6 chart size formats Part of GTeks most popular series CR2010 they offer utmostreliability and versatility at an affordable price

Since the marking on the chart is through the pressurizedneedle there is no need to worry about the ink being exhausted or replacing thepen Pressure sensitive papers are used instead of thermal papers to ensure thatthe marking is retained for a longer period of time

These 6 recorders are widely used in low temperatureequipment blood banks incubators and many more places They come for RTD Pt100inputs 420mA 01v process inputs Standard chart speeds are 4Hr  24Hr and 168Hr 7Day per revolution

These recorders are microcontroller based Crystal controlled chart drive ensures good chart speed accuracy Stepper motors for both pen and chart drive ensure no lag and no backlash A transparent polycarbonate door makes the chart visible from distance They come with a universal power supply as a standard feature Other power supply inputs are also available

Features

• 6 Chart Width
•  Inkless Chart Recorder
• Pressure Sensitive paper for long retention of data
• Without Display
• Single Analog Input channel
• Universal Power Supply 85264 V AC 4763 Hz
• Other power supply inputs on request
• Battery Back up
• Direct Input standard PT100 sensor
• Process Input through 420mA or 020mA or 01V DC
• 7 Days Rev Chart Speed
•  Other Chart Speed available on request
